Aiko 1 Ton 1.5M Electric Winch Stacker - Heavy Duty Warehouse Hoist | PT WS100 Model | Perfect for Lifting & Moving Pallets in Warehouses, Factories & Workshops

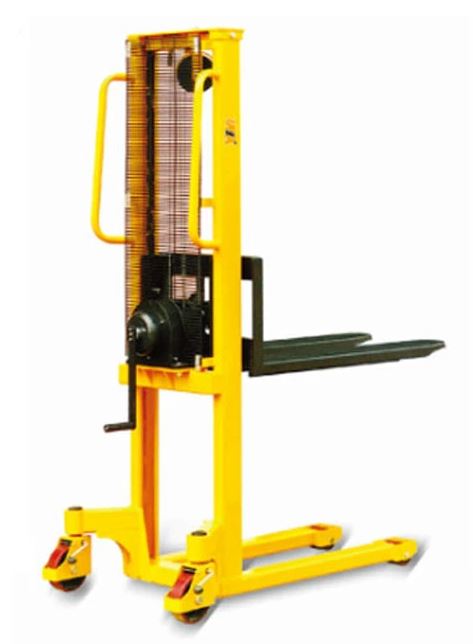

Aiko 1 Ton 1.5M Winch Stacker  | Model : PT-WS100

Features :

• Compact and service free design.

• Unique design of winch for easier and safety lifting.

• Heavy duty "C" section mast.

• Adjustable fork width from 160mm to 690mm(WS25, WS50).

• Two parking brakes on steering wheels.

Specifications :

• Model : WS100
• Capacity : 1000 kg
• Load Center : 575 mm
• Max. Fork Height : 1500 mm
• Lowered. Fork Height : 88 mm
• Fork Adjust Width : 540 mm (Fixed)
• Fork Width : 160 mm
• Fork Length : 1150 mm
• Effort Force to Rated Load : 100 mm
• Lifting Height per stroke : 9.5 mm
• Ground Clearance : 24 mm
• Min. Turning Radius (outside) : 1250 mm
• Front Load Roller : Φ80 x 94 mm
• Steering Wheel : Φ150 x 50 mm
• Overall size (LxWxH) : 1600 x 725 x 1930 mm
• Net Weight : 182 kg

  *Please take note only for open pallet
