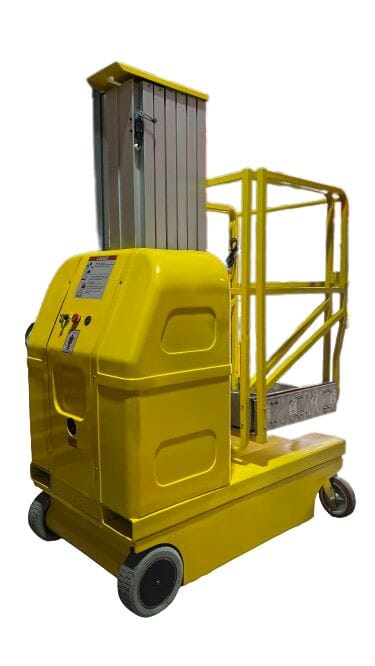

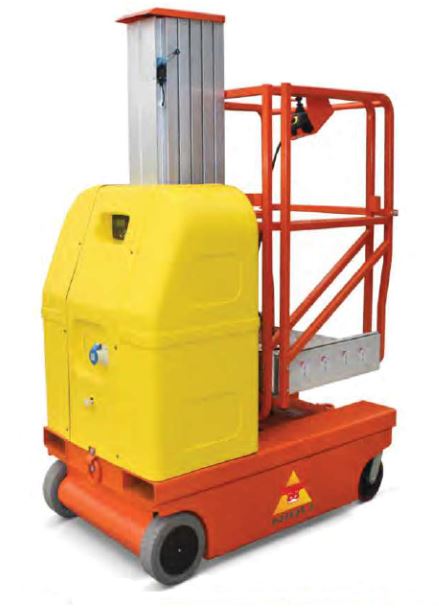

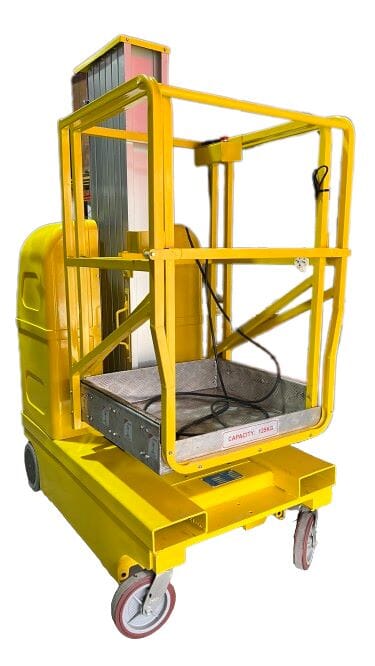

Aiko 125kg 7.5m Self-Propelled Scissor Lift Platform - Model PT GTWZ7.501 | Electric Hydraulic Aerial Work Platform for Construction, Warehouse Maintenance & Indoor Industrial Use

Aiko 125kg 7.5m Self Propelled Lift Platform  | Model : PT-GTWZ7.501

Features :

• Standard equipment

• Proportional controls

• Automatic Pothole Protection

• 2WD

• Emergency lowering system

• Emergency stop button

• Onboard diagnostic system

• Tilt sensor with alarm

• Low volt age alarm

• Horn

• Hour meter

• Forklift pockets

• Charger protection

• Charge indicator
• Flashing beacon

• Can Bus Technology

• Controller languages choose

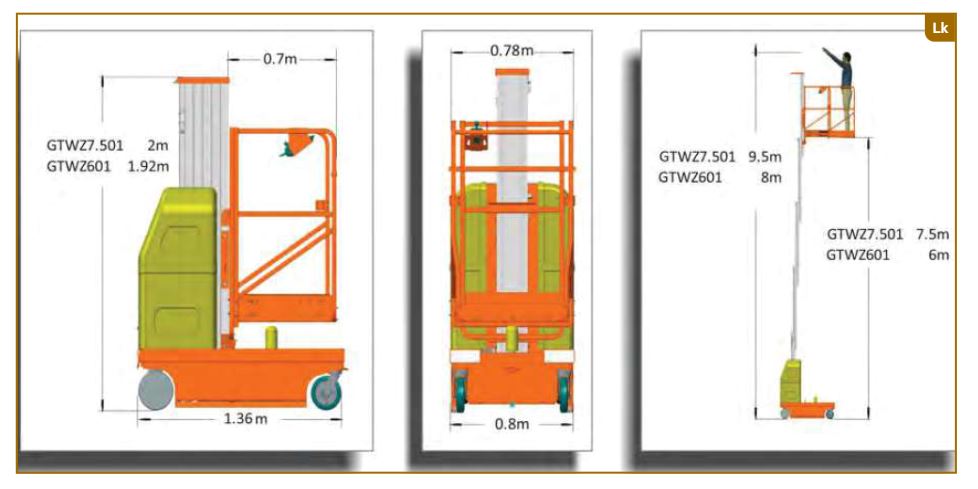

Specifications :

• Load Capacity : 125 kg
• Extended Platform Load : 90 kg
• Working Height : 9.5 m
• Platform Height : 7.5 m
• Overall Height : 2.00 m
• Overall Width : 0.8 m
• Overall Length : 1.36 m
• Maximum Slope : 1.5 - 3°
• Grade Ability : 30%
• Maximum Drive Speeds - Stowed : 4Km/h
• Maximum Drive Speeds - Raised : 1.1km/h
• Ground Clearance : 0.02 m
• Wheel Base : 1.17 m
• Front Wheel : 8in
• Drive Wheel : Ø250*80
• Platform Size : 0.78*0.70 m
• Platform Extension Size : 0.56 m
• Self weight : 880 kg
• Batteries : 2-12V / 120 Ah
• Integrated Charger : 24V / 15A
• Drive Motor : 2-24V / 0.5 kw
• Lifting Motor : 24VDC / 1.5kw
• Up/down Speed : 48/40 sec
