415V 50HZ Spot Welder DN 25 - Industrial Metal Welding Machine | Model W DN25 | Perfect for Automotive Repair, Metal Fabrication & DIY Projects

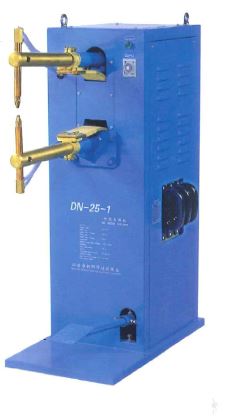

415V 50HZ Spot Welder DN-25  | Model : W-DN25

Features :

• DN series spot welding machines are widely used in the manufacture of metal cabinets, construction machinery repair, auto parts, bicycle parts, special-shaped marked parts, electronic components, instruments, electrical switches, cable production, filters, mufflers, metal packaging , Chemical container, wire mesh, net basket and other metal products industry.
• DN series spot welders can weld medium and low carbon steel plates, metal plates of different thicknesses, round steel and round steel, small diameter wires, steel plates and work pieces, and various non-ferrous metal special-shaped work pieces with high quality and efficiency.
• low failure rate, high solder joint quality and high efficiency

Specifications :

• Model : DN-25
• Capacity : 25 Kva
• Voltage : 415 v
• Initial Pole Current : 65 A
• Adjustable Pole Number : 7 Levels
• Welding Speed : 5400 Points/Hours
• Welding Thickness : 3 + 3mm
• Basket Diameter : 4 + 4mm
• Electrode Arm Length : 400mm
• Electrode Arn Spacing : 125mm
• Electrode Stroke : 15 mm
• Pressurization Method, Pedal , Pressure : 150 Kg
• Weight : 105 kg
• Overall Size : 700 + 400 + 1200mm
