Aiko 2 Ton Heavy Duty Pallet Truck 560 x 1150mm - Warehouse Equipment for Loading, Moving & Stacking Goods | Model PT AIKO120

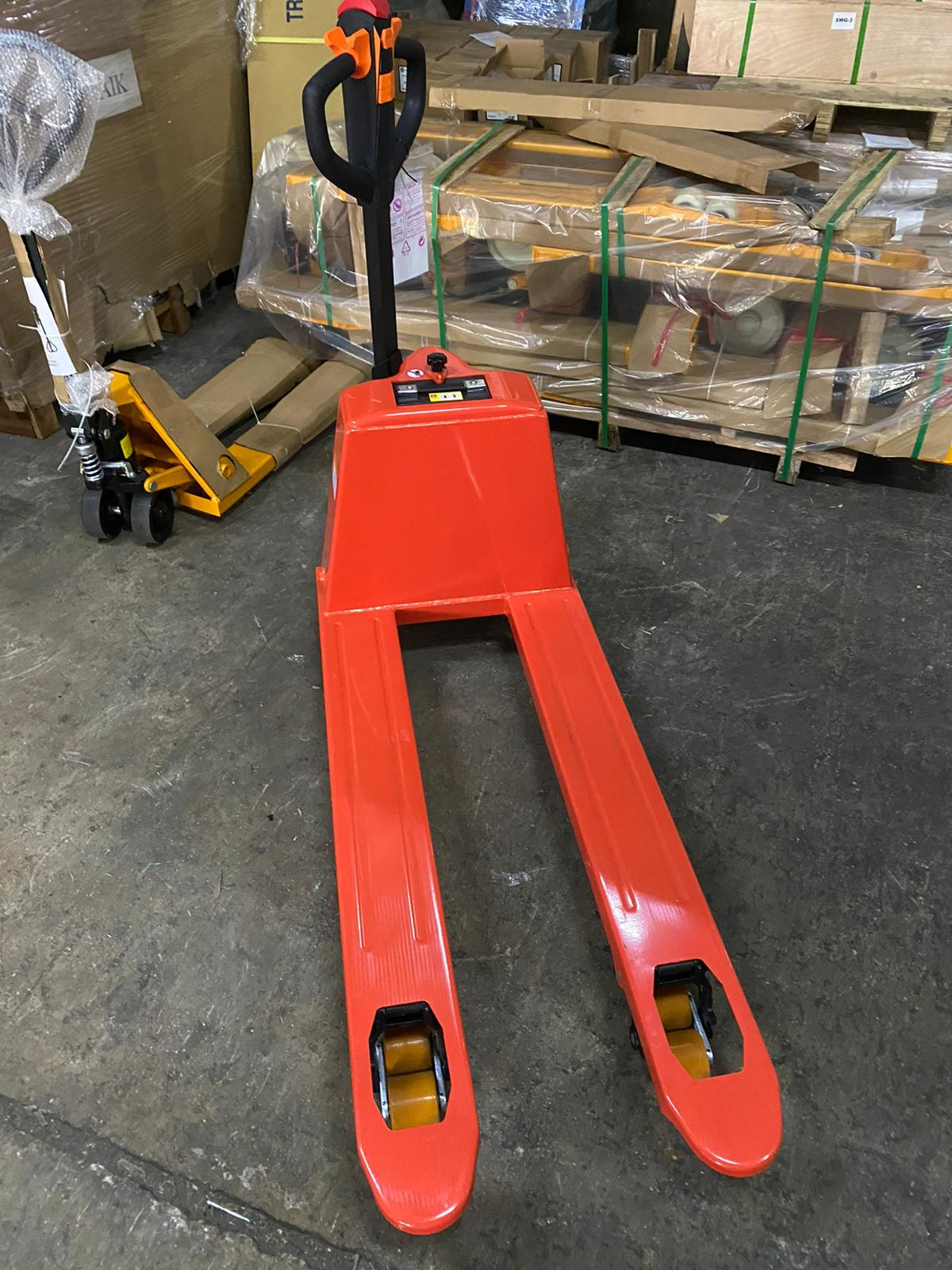

Aiko 2 Ton Pallet Truck (560 x 1150mm) | Model : PT-AIKO120

Specifications :

• Model : PT-AIKO120
• Capacity : 2000 kg
• Load Centre : 600 mm
• Wheelbase : 1220 mm
• Drive Wheel Size , Number : µ190*70/1 mm

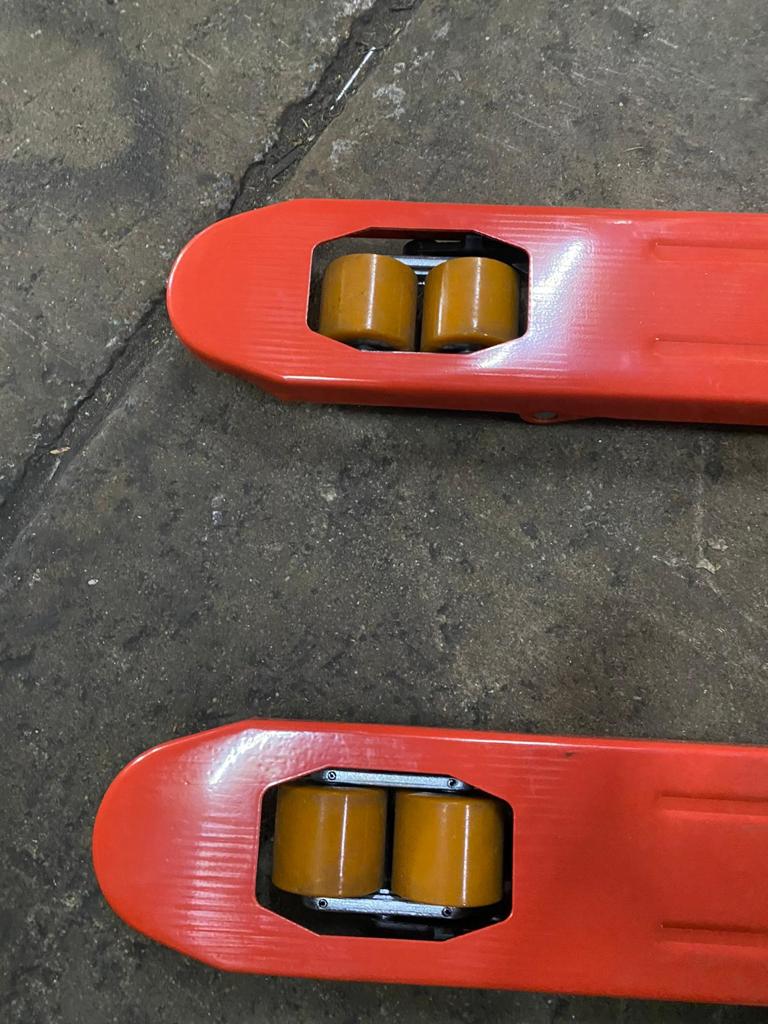

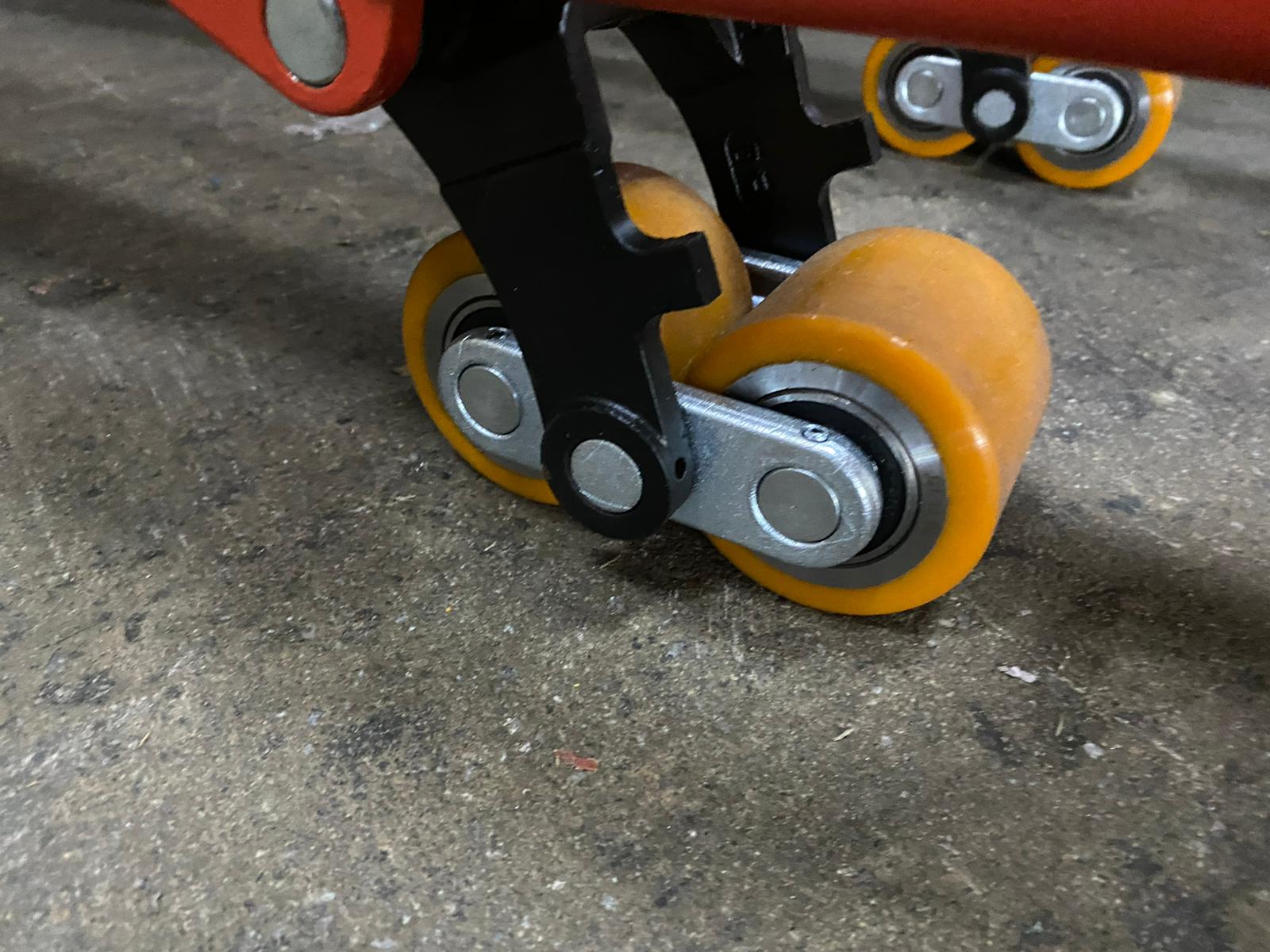

• Load Roller Size , Number : µ80*70/4 mm
• Fork Height : 85 - 195 mm

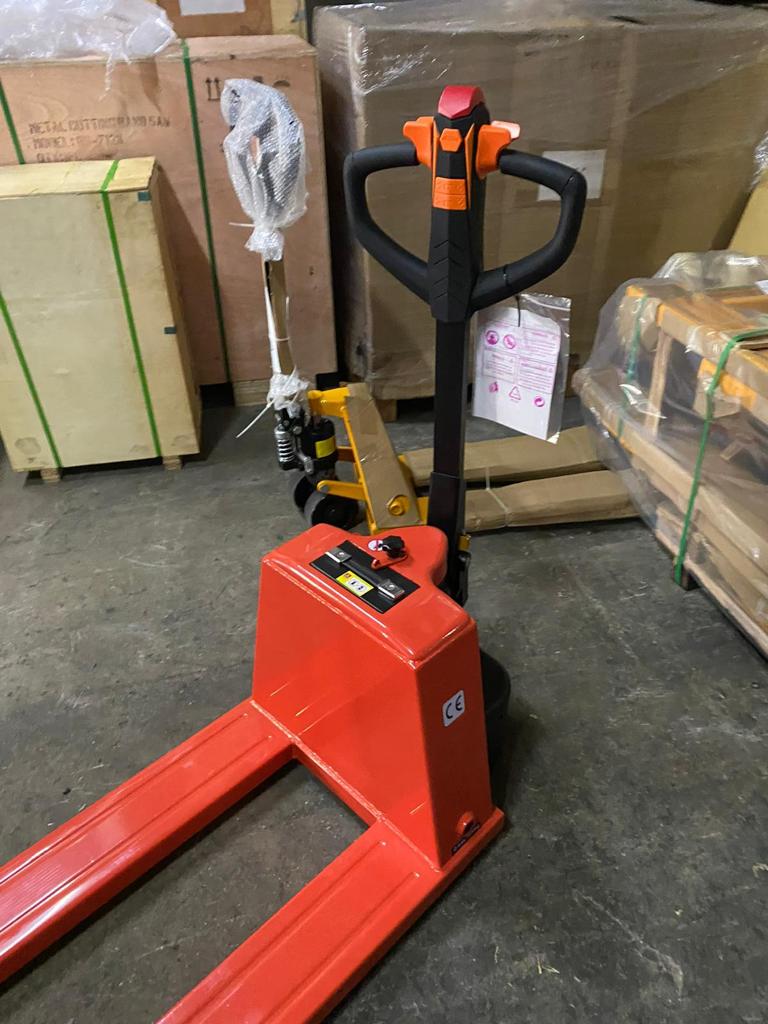

• Height of Tiller in Drive Position Min/Max : 1200 mm
• Totally Length : 1540 mm
• Fork Size : 560 x 1150 mm
• Ground Clearance : 30 mm
• Min Right - angle stack channel width, ( Pallet Size 1000x1200 , 1200 placed along cargo fork) - 1500 mm
• Turning Radius : 1350 mm
• Drive Speed With / Without Loading : 4.5 km/h
• Gradeability : 8- 20 %
• Brake : Electromagnetic Brake
• Power of Drive Motor : 850W
• Power of Lifting Motor : 600W

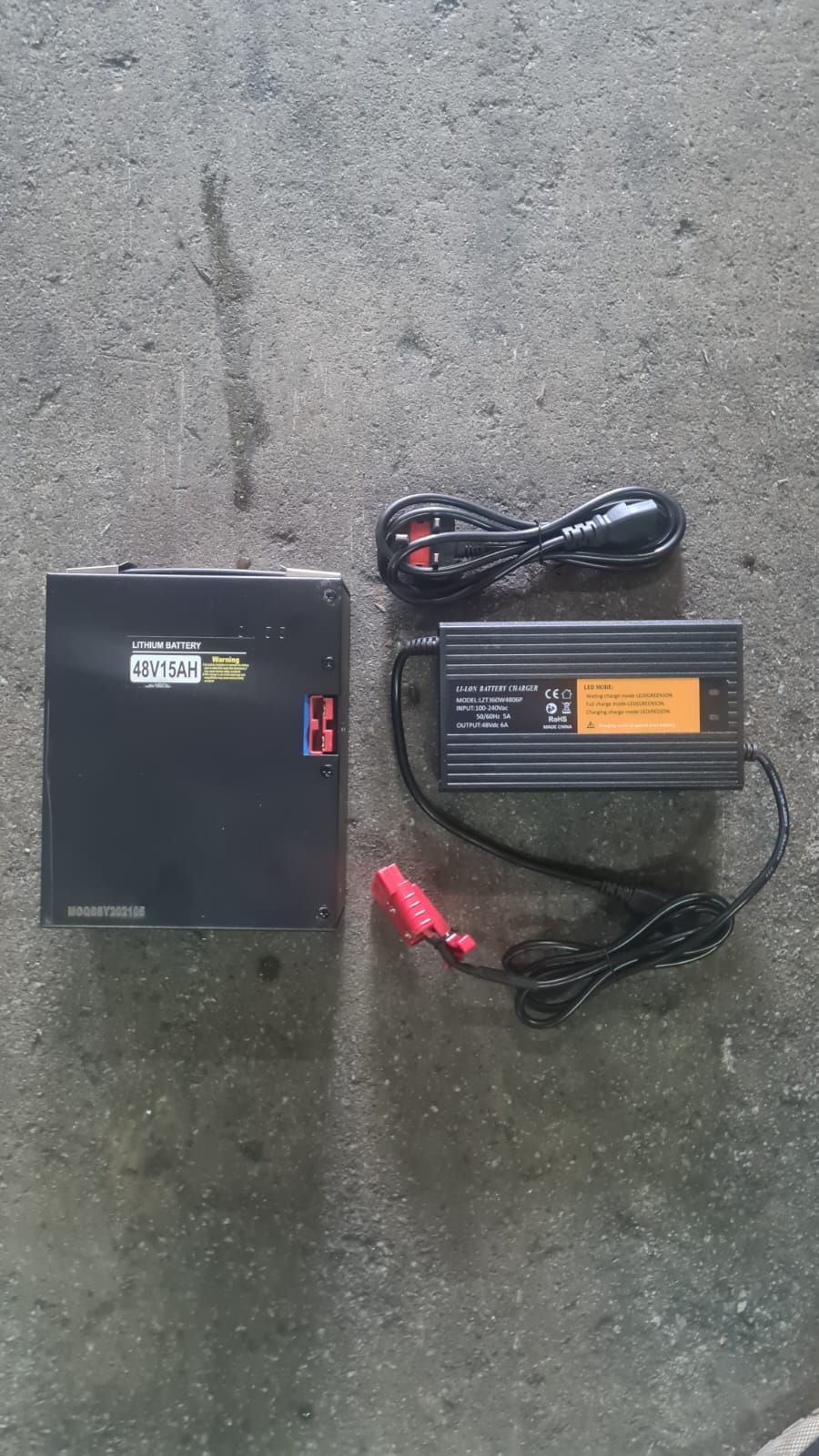

• Battery Capacity : 48V / 15 Ah
• Battery Weight : 6.3 kg
• Working Time After Full Charge : >3h
